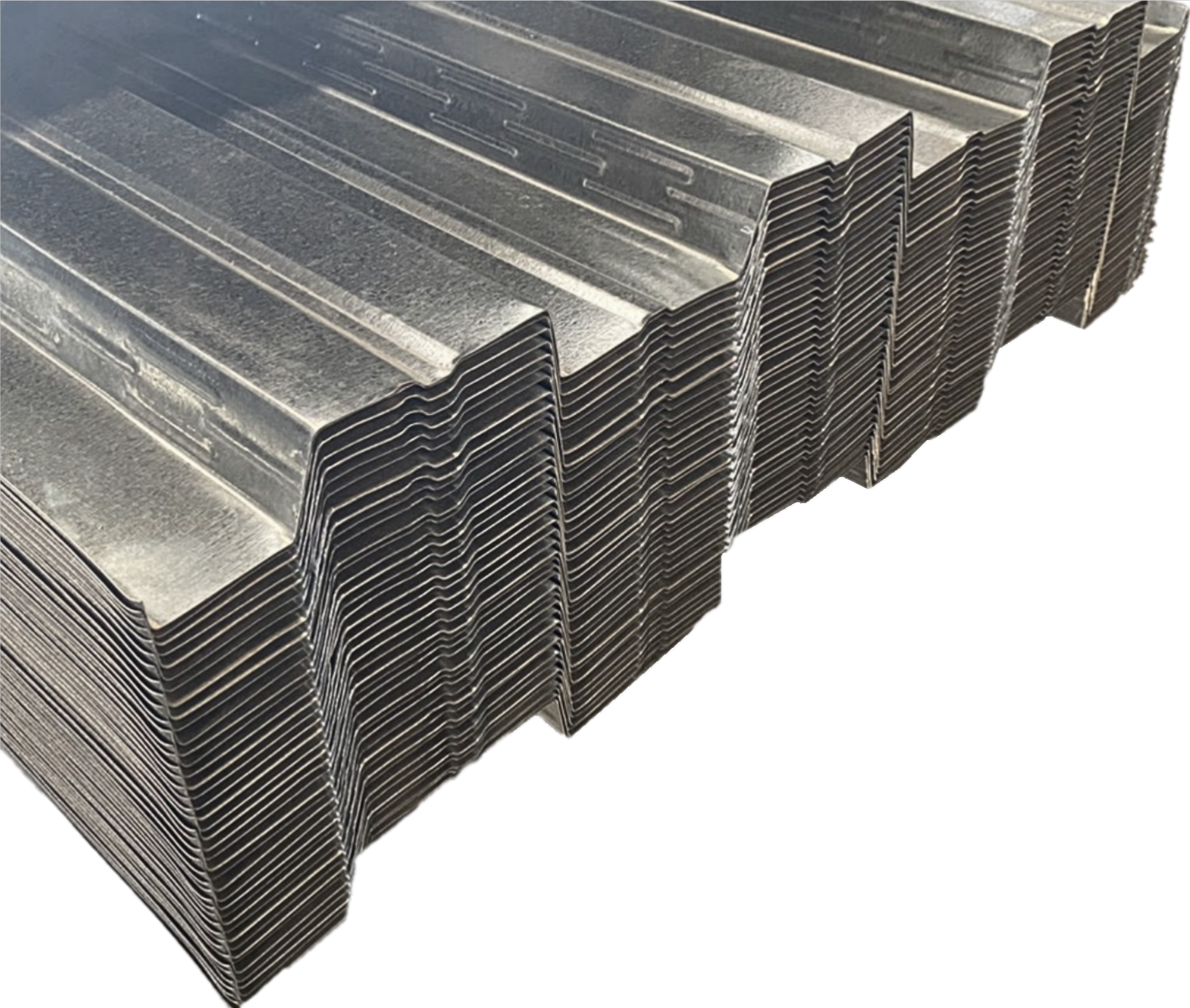

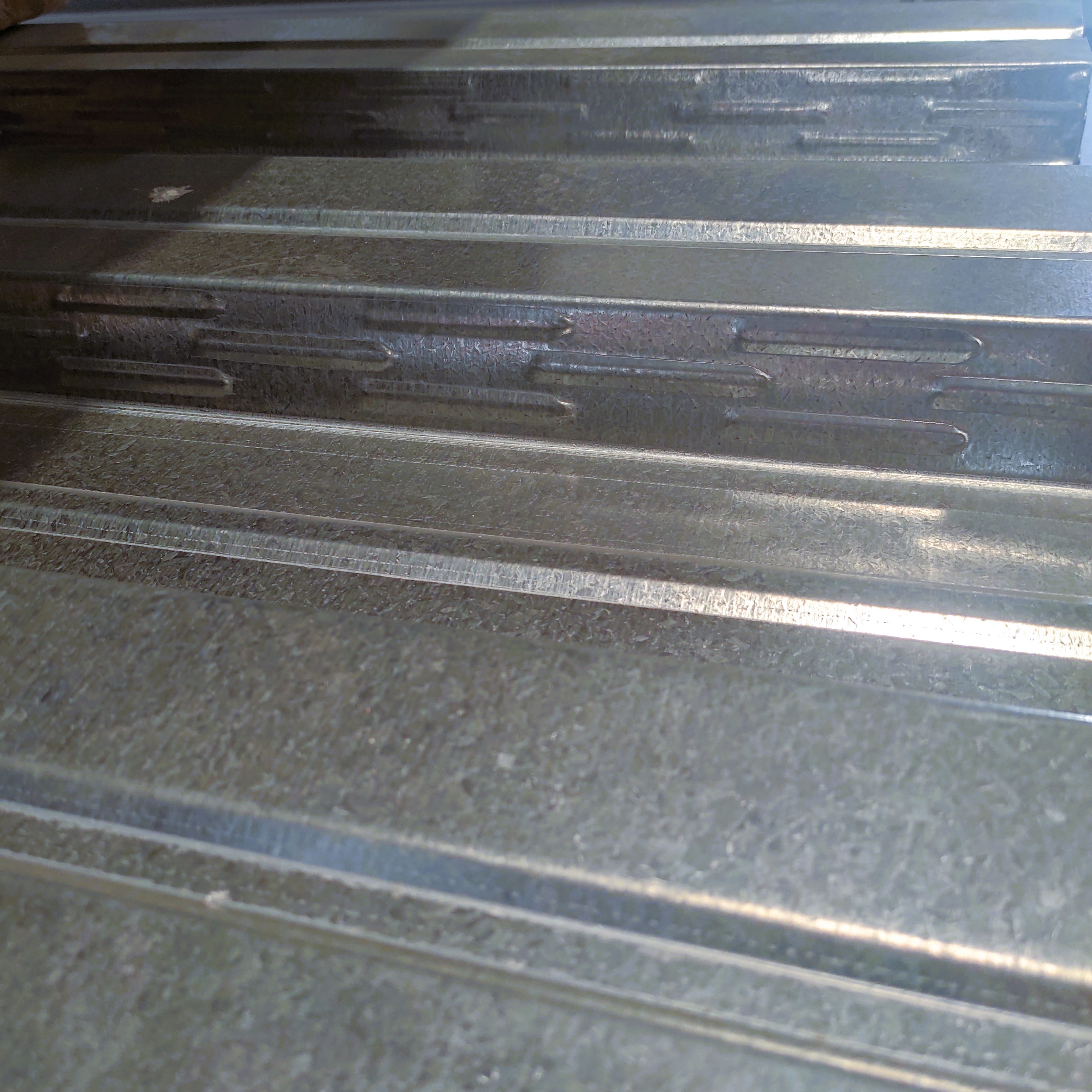

SAF Steel's composite SAF-51/914 is a steel deck roll formed to cover 914 mm (36 in.). The deck is available with a galvanized coating according to ASTM A 653M standards, with a zinc thickness corresponding to Z275 (G90). Note that other types of steel sheet finishes may affect the bond properties between the deck and concrete. Venting slots can be added to the bottom of the flutes.

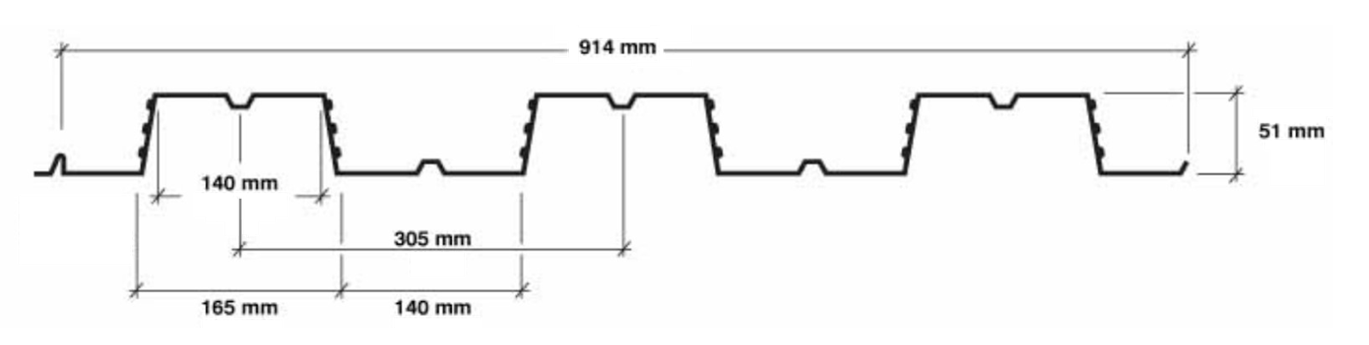

Nominal thicknesses are 0.76 mm (0.030 in.), 0.91 mm (0.036 in.), and 1.21 mm (0.048 in.). The flutes are 51 mm (2 in.) deep and spaced 305 mm (12 in.) center to center. The deck can be rolled to lengths from 1,800 mm (6 ft.) to 12,200 mm (40 ft.). The wide flutes provide enough space to weld headed studs through the deck to the top of beams or joists, which will act in composite action with the concrete slab. The standard steel grade conforms to ASTM A 653M SS Grade 230 with a yield strength of 230 MPa (33 ksi). Steel grades up to 350 MPa (50 ksi) and material thickness of 1.07 mm (0.042 in.) are available given sufficient delivery time.

For more information, contact our sales department.

SAF Steel manufactures the SAF-51/914 composite deck and offers delivery services. If you’d like to discuss your requirements, manufacturing and delivery times, please contact our sales department for more information.
