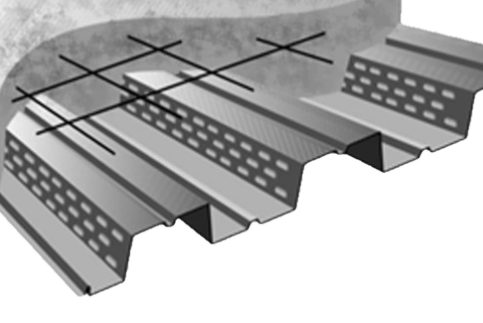

SAF Steel manufactures a composite steel deck roll-formed to cover 830mm(32.75 in). The deck is available with a galvanized coating according to ASTM A 653M, with a zinc thickness corresponding to Z275 (G90). Other types of steel sheet finishes may affect the bond properties between the deck and concrete. Venting slots can be added to the bottom of the flutes.

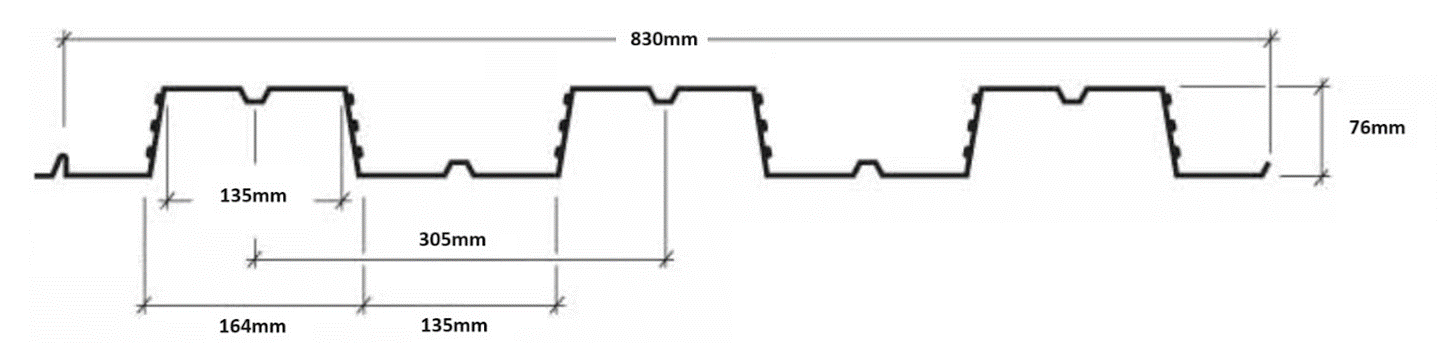

Nominal thicknesses are 0.76 mm (0.030 inches), 0.91 mm (0.036 inches), and 1.21 mm (0.048 inches). The flutes are 76 mm (3 inches) deep and are spaced at 305 mm (12 inches) center to center. The deck can be rolled to lengths from 1,800 mm (6 feet) to 12,200 mm (40 feet). The wide flutes provide enough space to weld headed studs through the deck to the top of beams or joists that will act in composite action with the concrete slab. Standard steel grade conforms to ASTM A 653M SS Grade 230 with a yield strength of 230 MPa (33 ksi). Steel grades up to 350 MPa (50 ksi) and material thickness of 1.07 mm (0.042 inches) are available with sufficient delivery time.

For more information, contact our sales department.

SAF Steel manufactures the SAF-76/830 composite deck and offers delivery services. If you’d like to discuss your requirements, manufacturing and delivery times, please contact our sales department for more information.
